Key Features：
Efficiancy: 150-180Lm/W
LED Driver: Inventronics, Meanwell or SOSEN or OSRAM
LED Chip: Philips 5050 or 3030
Beam Angle: 60°/90°/30°*90°/30°*150°/70°*150°, Type Ⅱ-M/, Type Ⅲ-M optical lens
IP Rated: IP65
Controls: daylight sensor
Warranty: 3-5 years

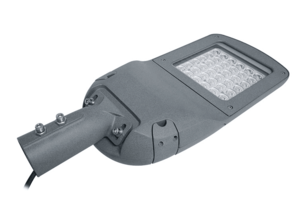

B series LED street lights 30W-240W specs:
| SKU | BSL-60W | BSL-80W | BSL-100W | BSL-130W | BSL-150W | BSL-200W |
| Watts | 40W | 80W | 100W | 130W | 150W | 200W |
Replace HID Luminaire | 100W
| 250W
| 320W
| 400W
| 600W
| 800W
|
| Led Qty | 18 leds | 60leds | 72 leds | 90 leds | 96 leds | 144 leds |
Initial Luminous Flux (Test data by 5000K) | 5,900 lm
| 12,400 lm
| 15,000 lm
| 19,800 lm
| 21,500 lm
| 26,500 lm
|
| Luminous Efficiency | >150 lm/w | >150 lm/w | >150 lm/w | >150 lm/w | >150 lm/w | >150 lm/w |
| Power Factor | >0.90 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Holder | 48mm or 60mm | 48mm or 60mm | 48mm or 60mm | 60mm | 60mm | 76mm or 60mm |
| Housing Size | L507*W212*H90mm | L677*W305*H187mm | L850*W399*H198mm |
| CCT | 4000K to 6500K |
| Input Voltage | 90-305 VAC |
| CRI | >70 |
| LED Chip | Philips 5050 or 3030 |
| LED Driver | Inventronics, Meanwell, Osram, Philips |
| Housing Color | Gray |
| Housing Material | Aluminum, PC, Glass |
Working Environment | -30°C to +50°C; 10% to 90% RH
|
| Lifespan | >50000 hrs(LM80) |
| Warranty | 3-5 years |
